BK Aluminum Rail Crane

Multi‑station Coverage Expert with Flexible Wiring
KBK Aluminum Rail Crane
Energy‑saving solution with ultra‑light self‑weight and extra‑long travel
Lifting capacity: 0kg‑2000kg, suitable for clean lifting of small‑to‑medium‑sized components in electronics, food and pharmaceutical industries. Its price is higher than flexible rails and rigid rails.
Applicable span: up to 8 m in width. The aluminum rail features anodized surface with low friction coefficient and supports a certain overhang length.
Operation mode: Extremely smooth manual pushing with obviously lower resistance than steel rails; electric drive is optional to realize silent and stepless‑speed traveling, ideal for workstations requiring frequent direction changes.

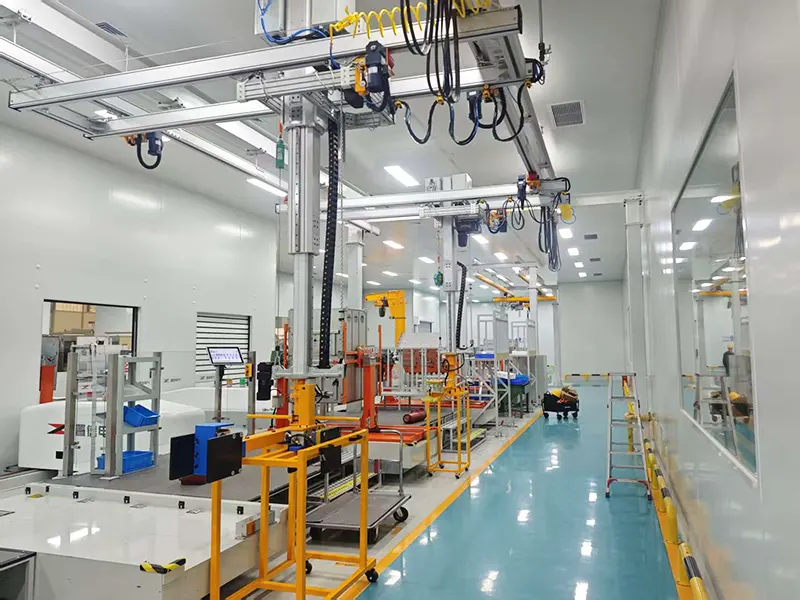

Application sites: Suitable for light‑duty environments demanding high cleanliness and low noise, such as electronic assembly lines, lithium‑ion battery workshops, food packaging lines and precision‑instrument laboratories.
Core advantages: Aluminum rail weighs over 50 % less than steel rail, greatly reducing roof load‑bearing stress and enabling denser rail layout. It delivers low operating energy consumption, rust‑free performance and paint‑free maintenance, cutting full‑life‑cycle maintenance costs by approximately 25 %.

Quick Detail:

KBK aluminum rail crane is a light‑duty lifting equipment manufactured from high‑strength aluminum profiles, with a maximum lifting capacity of 2000 kg. The system consists of aluminum rails, traveling trolleys, electric hoists and various modular connecting components for material handling in clean environments, workstations and production lines. Adopting anodized aluminum profiles, the rail combines lightweight properties and durability for long‑term corrosion resistance. Compared with steel structures, the aluminum system achieves around 50 % weight reduction and lower rolling resistance for manual operation. Multiple installation types including suspension‑mounted and column‑mounted are supported, compatible with single‑girder, double‑girder or single‑rail systems to flexibly adapt to diverse factory layouts. It is widely used in light‑duty handling scenarios requiring high cleanliness and low noise in electronics, food, pharmaceuticals and precision manufacturing industries.

Description:

KBK aluminum rail crane is a lightweight solution developed on the basis of traditional KBK steel rail systems. Fabricated by extruding high‑strength aluminum profiles with anodized rail surfaces, it features light self‑weight, corrosion resistance, smooth operation and low noise. With lifting capacity ranging from 125 kg to 2000 kg, the smooth‑running system facilitates hoisting operations and complies with ergonomic principles.
The KBK aluminum rail system offers multiple profile specifications including A12, A16, A18, A22 and A28 series. The A28 series aluminum rail reaches a lifting capacity of 2000 kg with a single‑rail length up to 10.5 m. Reinforced A22‑V and A28‑V systems extend the main‑beam length of 2000 kg single‑girder KBK aluminum rail cranes to over 10 m and the span beyond 9 m. For A28 aluminum rail under 250 kg load, the hanger spacing can reach 10.5 m.
The KBK aluminum rail system adopts modular design with all standardized components for fast bolt‑on installation. Components can be freely combined and connected according to working conditions and on‑site requirements, and rails can be adjusted at any time to accommodate changes in production processes. Manual push‑travel, electric travel or pneumatic drive are supported, and the system can be upgraded to fully automatic control. Built‑in conductor rails are available to supply power for hoisting and driving units. Aluminum rails can also be combined with KBK steel rail profiles to achieve larger hanger spacing.
Compared with conventional steel cranes, KBK aluminum rail cranes consume less power during operation for better energy conservation and environmental protection. Aluminum rail is over 50 % lighter than steel rail, significantly lowering roof load‑bearing requirements and allowing denser rail arrangement. The rails are rust‑free and paint‑free for lower full‑life‑cycle maintenance costs. The whole system is nearly maintenance‑free and equipped with secondary protection devices for higher safety factors. Stable operation is guaranteed within the ambient temperature range from ‑10 °C to +40 °C.

Applications:

KBK aluminum rail crane is widely applied in the following fields:
Electronic Manufacturing & Assembly: Suitable for liquid‑crystal panel handling, production‑line material supply and precision circuit‑board hoisting. Low‑vibration operation protects sensitive components.
Food & Pharmaceutical Industry: Used for material handling on food packaging and pharmaceutical production lines. Anodized aluminum surfaces are rust‑proof and paint‑flake‑free without dust pollution, fully meeting hygiene requirements for clean workshops.
Precision Instruments & Laboratories: For handling and hoisting of experimental equipment and precision samples, delivering smooth operation and accurate positioning.
Lithium‑ion Battery & New-Energy Workshops: Applied in lithium‑ion battery workshops and other scenarios with strict requirements for cleanliness and anti‑static performance.
Automotive Component Assembly: Used for inter‑station handling and assembly of precision parts such as engines and gearboxes.
General‑Industrial Workshops: Suitable for light‑duty operations including workstation material handling, production‑line supporting and warehouse logistics in workshops.
Old‑Factory‑Building Renovation Projects: Thanks to its light self‑weight and low roof‑load‑bearing requirements, it is especially ideal for retrofitting lifting equipment in old workshops with limited load‑bearing capacity.
Clean Rooms & Dust‑Free Workshops: Applicable to special workplaces with strict environmental‑cleanliness requirements.

Specifications:

Competitive Advantage:

Light Weight to Reduce Load on Workshop Structure: The density of aluminum alloy is only one-third that of steel. Aluminum rails weigh more than 50% less than steel rails, greatly lowering the load on roof structures. It is especially suitable for retrofitting old workshops with limited load-bearing capacity.
Smooth Operation & Effortless Handling: Aluminum alloy rails feature an extremely low friction coefficient. Combined with nylon traveling trolleys, manual pushing is ultra-smooth. Compared with KBK rigid rails, friction resistance is reduced by approximately 50%. Manual traveling remains easy even for heavy loads up to 2000kg.
Clean & Eco-friendly for Special Applications: The aluminum alloy surface is anodized, which prevents rusting, peeling paint and dust contamination, fully meeting sanitary requirements for clean workshops in electronics, food, pharmaceutical and other industries. It delivers lower noise levels for quiet operation. <Corrosion Resistant & Maintenance-free: The anodized surface provides long-term anti-corrosion performance. The rails are rust-free and require no painting, cutting full-lifecycle maintenance costs by around 25%. The whole system is nearly maintenance-free.
Modular Design for Flexible Modification: All components are standardized modules connected by bolts for easier installation and modification. Track length can be extended or shortened, layouts adjusted or the whole system relocated anytime to accommodate production line upgrades.
Easy Installation for Quick Commissioning: Modular design and bolted connections eliminate complicated welding and civil foundation work. Installation and commissioning can be completed rapidly, saving substantial time and costs.
Safe, Reliable & Long Service Life: Equipped with secondary protection devices for an enhanced safety factor. Aluminum alloy offers good corrosion and wear resistance with a long service life. Stable operation is available within a wide temperature range from -10°C to +40°C.
